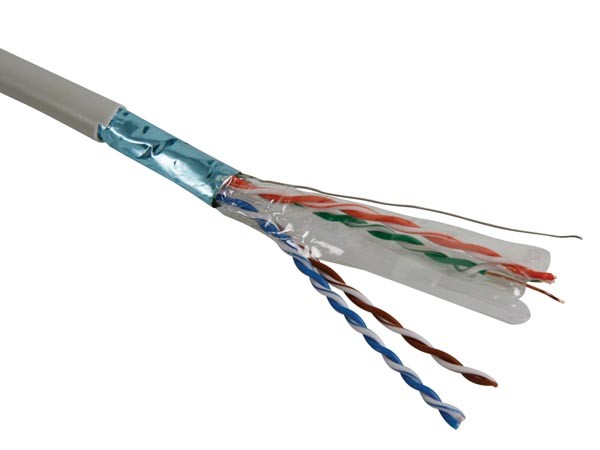

FTP CAT6 Network Cable Solid Copper with PVC Jacket for High Speed Transmission
Quick Detail:
- Network cable
- Lan Cable
- FTP CAT6
- 4 Pairs, 23 AWG
- Soild Copper Conductor
- High Quality PVC Jacket
- Defined in ANSI/TIA/EIA-568-A, with clarification in TSB-95
- 305M / 1000FT, Pull Box, Wooden Reel, Pallet
- MOQ: 30.5 KM
Description:
ZION NETCONNECT Enhanced Category 6A (Cat6A) FTP cables exceed TIA/EIA-568-B.2,
ITA/EIA 568-C and ISO/IEC 11801 Class D, IEC61156-5, EN50288 and EN50173
performance requirements, providing extra headroom for a more robust cabling system.
They comply with all of the performance requirements for current and proposed applications
such as Gigabit Ethernet 1000Base-T IEEE802.3ab,100BASE Tx, token ring, 155 Mbps ATM,
100 Mbps, 1.2Gbps, TP-PMD, ISDN, analog (Broadband, Baseband) and digital video and
analog and digital voice (VoIP) and VoIP Camera application.
The cable is available in white, gray, blue and yellow, and packaged as wooden reels,
reelin- box and pull box.
ZION using best raw material and best worker to produce FTP CAT 6 to meet
high performance in practical application.
Because of good managing methods, ZION’S price of FTP CAT 6 is not high
although our quality is really high.
| FTP CAT6 Network Cable Solid Copper with PVC Jacket for High Speed Transmission |
| Application & Industry Standard: |
| 10 Base-T(IEEE 802.3),4/16 Mbps Token Ring (IEEE 802.5),100BASE-VG-AnyLAN |
| 100 Mbps TP-PMD(ANSI X3T9.5),TIA/EIA-568-B.2 , ISO.IEC 11801 Class D |
| IEC61156-5, IEC60332-1, EN50288, EN50173-1 |
| |
| Construction |
| Center conductor | 23 AWG / 0.57 mm Solid Bare Copper |
| Number of Conductor | 8 (4 Pairs) |
| Insulation | 1.10 ± 0.05 mm HDPE |
| Drain Wire | 0.50 mm Tinned Copper |
| Shield | PET / AL-Foil |
| Ripcord | Cotton Wire |
| Outer jacket | 7.00 ± 0.10 mm PVC |
| Insulation colors | Blue,White/Blue |
| Orange,White/Orange |
| Green,White/Green |
| Brown,White/Brown |
| |
| Electrical Characteristics at 20 °C |
| Impedance | 100 ± 15 Ω |
| DC resistance(max) | 8.9 Ω/100m @20℃ |
| Mutual capacitance(max) | 5.5 pF/100m @1kHz |
| Delay Skew | 45 |
| Voltage | 300 Volts AC or DC |
| |
| Mechanical Characteristics at 20 °C |
| Propagation Delay(max) | 540 ns@10MHZ |
| Min.Bending radius | 4×outside diameter of Jacket |
| Operating Temperature | -20 ℃ to 60℃ |
| |
| Performance Characteristics |
| Frequency | Attenuation (Max.) | Near End (dB) | ACRF (dB/100m) | PS-NEXT | PS-ACRF | Return Loss |
| 1 MHz | 2.1 dB/100m | 74.3 | 67.8 | 72.3 | 64.8 | 20 dB |
| 10 MHz | 5.9 dB/100m | 59.3 | 47.8 | 57.3 | 44.8 | 25 dB |
| 16 MHz | 7.5 dB/100m | 43.7 | 56.2 | 54.2 | 40.7 | 25 dB |
| 20 MHz | 8.4 dB/100m | 54.8 | 54.8 | 52.8 | 38.8 | 25 dB |
| 25 MHz | 9.4 dB/100m | 53.3 | 39.8 | 51.3 | 36.8 | 24.3 dB |
| 62.5 MHz | 15.0 dB/100m | 47.4 | 31.9 | 45.4 | 28.9 | 21.5 dB |
| 100 MHz | 19.1 dB/100m | 44.3 | 27.8 | 42.3 | 18.8 | 20.1 dB |
| 200 MHz | 27.6 dB/100m | 27.6 | 21.8 | 37.8 | 18.8 | 18.0 dB |
| 300MHz | 34.3 dB/100m | 34.3 | 18.3 | 35.1 | 15.3 | 16.8 dB |
| 500MHz | 45.3 dB/100m | 45.3 | 13.8 | 31.8 | 10.8 | 15.2 dB |
| * PVC – Polyvinylchlorid * AWG - American Wire Gauge * AL/PE - Aluminium/Polyethylene |
| |
| Order Informations: |
| Marking | ZION KT0250 FTP CAT6 XXX M/FT |
| Package | 305M / 1000FT, Pull Box, Wooden Reel, Pallet |
| Delivery time | Normally 20 days after received the deposit. |
Competitive Advantage:
1, From raw materials to final products, we perform intense quality checks to maintain our product quality:
A, Incoming material inspected by QC.
B, Manufacturing Process Control
C: Workers trained daily/weekly/monthly
D: Work instructions manual at each work station
E: 5S system implemented
F: Machine maintenance procedure
G: Quality Control and Final Inspection
The QC staff will check the material, process product
and final product according to the specification or test procedure.
2, Our R&D efforts center on reinforcing and developing element technologies
needed to support the future growth and success for customers and ZION.
3, We know customers have urgent needs.
We are skilled at effective communication to interact with customers.
In order to provide prompt service, we can answer for you 7*24 hours.
4, We can Quickly and professionally answer for the inquire
5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us
6, Intime delivery
