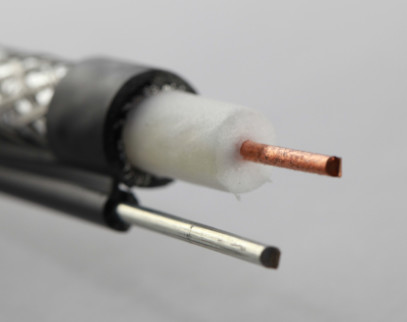

Outdoor RG11 CATV Coaxial Cable 14 AWG CCS 60% AL Braid PE Jacket Messenger
Quick Detail:
- CATV Coaxial Cable
- RG11 Coaxial Cable
- 14 AWG CCS Conductor
- Foamed PE Insulation
- 60% AL Braiding
- PE Jacket for Outdoor
- Zinned Steel Messenger
- 75 Ohms Coaxial Cable
- Tested to 3GHz
- ISO,CE,RoHS,UL
- 500FT, 1000FT, Wooden Spool, Carton
Description:
KT2045 RG11 CATV COAXIAL CABLE 14AWG CCS 60% AL PE Jacket With Messenger
is a specific type of CATV Coaxial Cable , RG11 (Produced by ZION) is perfect for
Digital Cable and Satalite, Attenas, and communication systems. RG11 has a characteristic
impedance of 75 Ohms. ZION using best raw material and best worker to produce
RG11 to meet high performance in practical application. RG11 is packed in 500FT, 1000FT
plastic/wooden spool, and will be layed on pallet to protect the spool and easier carry.
Because of good managing methods, ZION’S price of RG11 is not high although our quality is really high.
Applications:
Suitable for RF signal transmission
■ CATV
■ MATV
■ CCTV
■ Local Area Network
■ Digital Video
■ Antennas
| KT2045 RG11 CATV Coaxial Cable 14 AWG CCS 60% AL Braid PE Jacket With Messenger |
| Construction Parameters: |
| Inner Conductor | 0.064"/1.63mm/14AWG | Copper Clad Steel |
| Dielectric | 0.280"/7.11mm | Foamed PE |
| Shield 1 | 0.287"/7.29mm | Bonded Aluminum Polyproylene |
| Shield 2 | 60% coverage | Aluminum Braid Wire |
| Jacket | 0.400"±0.006"/10.16±0.15mm PE | |
| Jacket Thickness | 0.039"/0.99mm | |
| Messenger | 0.072"/1.83mm | |
| Minimum Breaking Strength | 365lbs./166kg | |
| Application | For Use in Longer CATV Run Lengths |
| |
| Electrical Characteristics: |
| Inner Conductor Resistance | The Max. at 20℃ shall be < 87 Ω/km < 26.53 Ω/1000ft |
| Capacitance | 52 ±3 pF/m 15.85 ±1 pF/ft |
| Impedance | 75 ± 3 Ω |
| Return loss | between 5 and 1000MHz: > 22dB |
| Velocity of Propagation | 0.85 |
| Sparker Test (VAC) | 4 |
| |
| Attenuation(20℃): |
| Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) |
| 5 | 0.38 | 1.25 |
| 55 | 0.96 | 3.15 |
| 83 | 1.18 | 3.87 |
| 187 | 1.75 | 5.74 |
| 211 | 1.90 | 6.23 |
| 250 | 2.05 | 6.72 |
| 300 | 2.25 | 7.38 |
| 350 | 2.42 | 7.94 |
| 400 | 2.60 | 8.53 |
| 450 | 2.75 | 9.02 |
| 500 | 2.90 | 9.51 |
| 550 | 3.04 | 9.97 |
| 600 | 3.18 | 10.43 |
| 750 | 3.65 | 11.97 |
| 865 | 3.98 | 13.05 |
| 1000 | 4.35 | 14.27 |
| |
| Mechanical and Environmental Properties |
| Cable bend radius | 10 times the cable diameter |
| Operating Temp Range (PVC) | -20 ℃ to 60 ℃ |
| Cable diamensions | 0.40''±0.006''/10.21±0.15 mm PVC |
| |
| Order Informations: |
| Marking | ZION KT2045 RG11 60% AL PE Messenger CATV COAXIAL CABLE ××× M/FT |
| Package | 500FT, 1000FT, Wooden Spool, Carton |
| Delivery time | Normally 25 days after received the deposit. |
Competitive Advantage:
1, From raw materials to final products, we perform intense quality checks to maintain our product quality:
A, Incoming material inspected by QC.
B, Manufacturing Process Control
C: Workers trained daily/weekly/monthly
D: Work instructions manual at each work station
E: 5S system implemented
F: Machine maintenance procedure
G: Quality Control and Final Inspection
The QC staff will check the material, process product
and final product according to the specification or test procedure.
2, Our R&D efforts center on reinforcing and developing element technologies
needed to support the future growth and success for customers and ZION.
3, We know customers have urgent needs.
We are skilled at effective communication to interact with customers.
In order to provide prompt service, we can answer for you 7*24 hours.
4, We can Quickly and professionally answer for the inquire
5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us
6, Intime delivery
