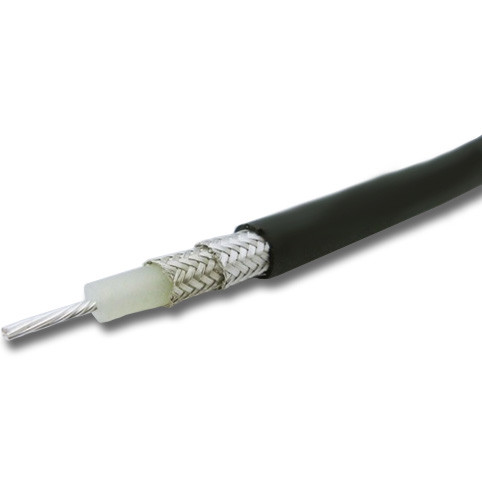

RG214 Coaxial Cable Stranded Silver Plated Copper with Double SPC Braid 50 Ohm
Quick Detail:
- RG214 Coaxial Cable
- 7 × 0.752mm Silver Plated Copper
- 7.24mm Solid PE
- 8.40mm Double Silver Plated Copper Braiding
- 10.80mm PVC
- 100M, 300M, Wooden Spool, Carton
- MOQ: 3 KM
Description:
KT0409 RG214 Coaxial Cable Stranded Silver Plated Copper with Double SPC Braid 50 Ohm
Coaxial Cable, or coax is a type of cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield. Many coaxial cables also have an insulating outer sheath or jacket. The term coaxial comes from the inner conductor and the outer shield sharing a geometric axis.
Coaxial cable was invented by English engineer and mathematician Oliver Heaviside, Coaxial cable differs from other shielded cable used for carrying lower-frequency signals, such as audio signals, in that the dimensions of the cable are controlled to give a precise, constant conductor spacing, which is needed for it to function efficiently as a radio frequency transmission line.
RG series cable originally created to support WWII military application. These cable quickly became the products of choice for commercial wireless applications once they hit the surplus market, such as microwave systems,military aerospace, military ground-based communication systems...
| KT0409 RG214 Coaxial Cable Stranded Silver Plated Copper with Double SPC Braid 50 Ohm |
| Construction Parameters: |
| Inner Conductor | 7×0.752mm | Silver Plated Copper |
| Dielectric | 7.24mm | Solid PE |
| Shield | Nom. 8.40mm | Double Silver Plated Copper |
| Jacket | 10.80mm | PVC (Color by your choise) |
| |
| Electrical Characteristics: |
| Capacitance | 101.05 pF/m |
| Impedance | 50 Ω |
| Velocity of Propagation | 0.66 |
| Max Operating Voltage(KVMS) | 3.7 |
| Operating Temp Range (PVC) | -25 ℃ to 70℃ |
| RoHS | YES |
| |
| Attenuation(20℃): |
| Frequency (MHZ) | | Max Attenuation (dB/100m) |
| 100 | | 6.60 |
| 400 | | 14.10 |
| 1000 | | 24.00 |
| 3000 | | 46.60 |
| 5000 | | 64.60 |
| 11000 | | 110.90 |
| |
| Order Informations: |
| Marking | ZION RG214 COAXIAL CABLE xxx M |
| Inner Package | 100M or 300M/Wooden Spool |
| Outer Package | Carton, Pallet (or Per customer's request) |
| Delivery time | Normally 25 days after received the deposit. |
| More informations | please contact with us. |
Competitive Advantage:
1, From raw materials to final products, we perform intense quality checks to maintain our product quality:
A, Incoming material inspected by QC.
B, Manufacturing Process Control
C: Workers trained daily/weekly/monthly
D: Work instructions manual at each work station
E: 5S system implemented
F: Machine maintenance procedure
G: Quality Control and Final Inspection
The QC staff will check the material, process product
and final product according to the specification or test procedure.
2, Our R&D efforts center on reinforcing and developing element technologies
needed to support the future growth and success for customers and ZION.
3, We know customers have urgent needs.
We are skilled at effective communication to interact with customers.
In order to provide prompt service, we can answer for you 7*24 hours.
4, We can Quickly and professionally answer for the inquire
5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us
6, Intime deliver
