1/2" Super Flexible RF Coaxial Cable Helical Copper Tube used for Antenna Jumpers

HANGZHOU ZION COMMUNICATION CO.,LTD

1/2" Super Flexible RF Coaxial Cable Helical Copper Tube used for Antenna Jumpers

  • 1
  • 2
  • 3

Brand Name : HELLOSIGNAL® OR OEM

Model Number : 1/2'' Super Flexible RF Coaxial Cable

Certification : CE, RoHS, CPR, UL

Place of Origin : CHINA

MOQ : 5 KM

Payment Terms : L/C, T/T

Supply Ability : 100KM / Month

Delivery Time : Normally 25 days

Packaging Details : 500M or 1000M/Wooden Drum

Inner Conductor : Copper Clad Aluminum

Dielectric : Foam PE

Outer Conductor : Helical Copper Tube

Jacket : PE Black

Package : 500M/Wooden Drum

Contact Now

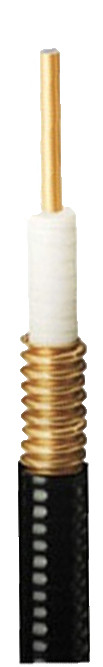

1/2" Super Flexible RF Coaxial Cable Helical Copper Tube used for Antenna Jumpers



Quick Detail:


  • 1/2'' Super Flexible
  • 50 Ohm Coaxial Cable
  • 3.55mm Copper Clad Aluminum
  • 8.70mm Foam PE
  • Helical Copper Tube
  • 13.40mm PE Black
  • 50 Ohm Impedence
  • Earth Station Antenna Jumper Cables
  • ULF,AM,FM Radio Broadcast Systems
  • 500M/Wooden Drum
  • MOQ: 5 KM


Description:

1/2" Super Flexible RF Coaxial Cable Helical Copper Tube used for Antenna Jumpers


Coaxial Cable is a type of cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield. Many coaxial cables also have an insulating outer sheath or jacket. The term coaxial comes from the inner conductor and the outer shield sharing a geometric axis.

Coaxial Cable was invented by English engineer and mathematician Oliver Heaviside, Coaxial cable differs from other shielded cable used for carrying lower-frequency signals, such as audio signals, in that the dimensions of the cable are controlled to give a precise, constant conductor spacing, which is needed for it to function efficiently as a radio frequency transmission line.


Applications:

RF Coaxial Cables have been widely used in Antenna Feeder Systems as follows:Lan Mobile and Cellular Radio;Earth Station Antenna Jumper Cables;Jumper for Equipments Room and Antenna Connection,etc.



1/2" Super Flexible RF Coaxial Cable Helical Copper Tube used for Antenna Jumpers
Construction Parameters:
  Inner Conductor3.55mm            Copper Clad Aluminum
  Dielectric8.70mm         Foam PE
  Outer Conductor12.00mm  Helical Copper Tube
  Jacket13.40mm                 PE Black

Electrical Characteristics:
  Capacitance80 pF/m
  Impedance50 Ω
  Velocity of Propagation 83%
  Peak Power Rating16 KW
  Jacket Spark 5.0 KV
  Operating Temperature Range    -55 ℃ to 80℃

Attenuation(20℃):
Frequency (MHZ)            Max Attenuation (dB/100m)Average Power (KW)
1003.223.03
2004.652.11
4507.201.37
8009.861.00
100011.150.88

Order Informations:
  MarkingZION 1/2" Super Flexible RF Coaxial Cable  XXX M
  Inner Package500M or 1000M/Wooden Drum
  Outer PackagePallet (or Per customer's request)
  Delivery timeNormally 25 days after received the deposit.
  More informations please contact with us.



Competitive Advantage:

1,  From raw materials to final products, we perform intense quality checks to maintain our product quality:
     A, Incoming material inspected by QC.
     B, Manufacturing Process Control
     C: Workers trained daily/weekly/monthly
     D: Work instructions manual at each work station
     E: 5S system implemented
     F: Machine maintenance procedure
     G: Quality Control and Final Inspection
         The QC staff will check the material, process product
         and final product according to the specification or test procedure.

2, Our R&D efforts center on reinforcing and developing element technologies
    needed to support the future growth and success for customers and ZION.
3, We know customers have urgent needs.
    We are skilled at effective communication to interact with customers.
    In order to provide prompt service, we can answer for you 7*24 hours.
4, We can Quickly and professionally answer for the inquire
5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us
6, Intime delivery


































Buy cheap 1/2" Super Flexible RF Coaxial Cable Helical Copper Tube used for Antenna Jumpers product
